Water Heater Thermocouple Replacement (Why and How!)

If your gas water heater’s pilot light won’t stay lit, there’s a very good chance you need a water heater thermocouple replacement.

I’m going to tell you what a thermocouple is, what it does, the signs that it has gone bad, and how to replace it. Let’s get started.

What is a Water Heater Thermocouple?

A water heater thermocouple is a sensor that turns off the gas supply when the pilot light goes out. This operational and safety feature is also known as a flame or heat sensor and its function is to control the flow of gas into the burner.

How Do You Know if Your Water Heater Thermocouple is Bad?

A bad thermocouple is the most common reason for a water heater pilot light that won’t stay lit. And it’s not unusual for it to wear out.

Ironically, this happens sometimes due to the very nature of the device: the constant change in temperature results in a worn-out or “stressed” thermocouple. It can also malfunction when residue or soot buildup causes the flame to be blocked.

A bad thermocouple can result from the following:

• A bent thermocouple: If the flame isn’t slightly touching the thermocouple, it could be bent or misaligned. Simply bend it toward the pilot.
• A dirty thermocouple: As noted above, soot or other residue can prevent it from working. To solve this problem, remove the thermocouple and clean it off. Caution: Always turn off the gas valve before you remove a thermocouple.
• A broken thermocouple: This can result from wearing out. If electricity does not run through the thermocouple, it’s broken. To test this, use a multimeter. If the voltage is less than 20MV, it is damaged and needs to be replaced. Read below for instructions on how to do that.

Water Heater Thermocouple Replacement: Instructions

1. Disconnect the Old Thermocouple

• Turn the gas control knob to OFF and close the gas shutoff valve.

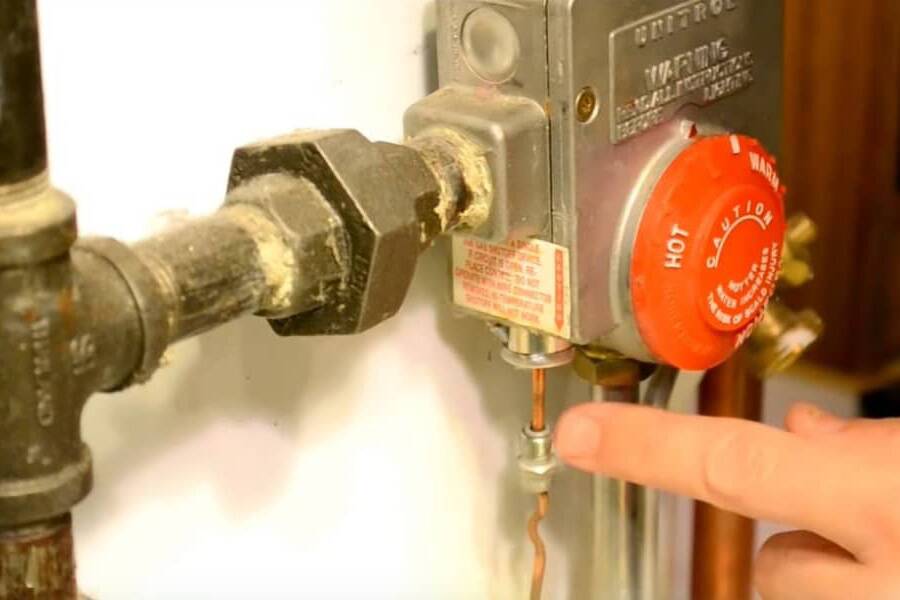

• With an open-end wrench, loosen the nut that secures the water heater thermocouple to the control unit, then unscrew it.
• Pull down on the copper lead to detach the end of the thermocouple from the control unit.
• There may be a second nut attaching the thermocouple tip to the pilot bracket; unscrew it and slide it back along the copper lead.
• Grip the base of the thermocouple and pull firmly, sliding it out of the pilot bracket.

2. Install the New Thermocouple

• Buy an exact replacement for the old thermocouple from a plumbing supply center that carries your brand or the plumber who installed your water heater.
• Push the tip of the new thermocouple into the pilot bracket clip as far as it will go.
• If there is a hexagonal nut at its tip, screw it to the bracket.
• Run the lead out and bend it up into a gentle curve.
• Screw the nut on the end of the thermocouple to the control unit by hand, then give it a quarter-turn with an open-end wrench.
• Relight the pilot (instructions for relighting a pilot on all major brands is here).
• If it does not stay lit, close the gas shutoff valve, and call for service.

Final Thoughts

A gas water heater thermocouple replacement is a project you can do yourself. But it is important that you follow the safety rules: (1) turn off the gas is priority number one, and (2) don’t touch the thermocouple until it has cooled down.
