How To Replace A Water Heater Thermostat (Danger! High Voltage!)
If hot water is scarce at your house, make sure the water heater’s thermostat is set correctly. If it is, then you might have a problem. Let me show you “” in just 4 steps “” how to replace a water heater thermostat that has gone bad.
Should You Replace the Water Heater Thermostat?
Firstly, you need to determine if you need a thermostat replacement. Then, go ahead and drain the water heater tank if you suspect it is filled with sediment. If you have no hot water, check the unit for power.
If neither of these measures solves the problem, you might need to replace the thermostat or the heating elements. To confirm the problem, remove the thermostat and the heating element and bring them to a plumbing supply house or appliance repair shop for testing.
Follow the steps below if you need to know how to replace a water heater thermostat. If it’s the heating element, go here for instructions.
How to Replace a Water Heater Thermostat
Electric water heaters have 2 thermostats and 2 heating elements.
To find out which pair is defective, turn on a hot water faucet. If the water gets warm but not hot, the upper thermostat and element will need to be replaced. However, if the water is hot for a short while, then goes cold, replace the lower element and thermostat.
This job will take about 2-3 hours, depending on your skill level. More so, you should know how to make electrical connections safely to do this as a DIY job. You’ll also need a screwdriver and a voltage tester.
1. Check the Power
- Shut off the power. Go to the main electric panel and turn off the circuit for the water heater. TIP: If you haven’t labelled your circuit breakers, the circuit for an electric water heater is most likely on a 30-amp breaker. Shut off all the 30-amp breakers until you find the water heater switch. Then label it for future reference.
- Remove the screws from the water heater access panel and lift off the panel.
- Remove any insulation in the panel that is in your way.

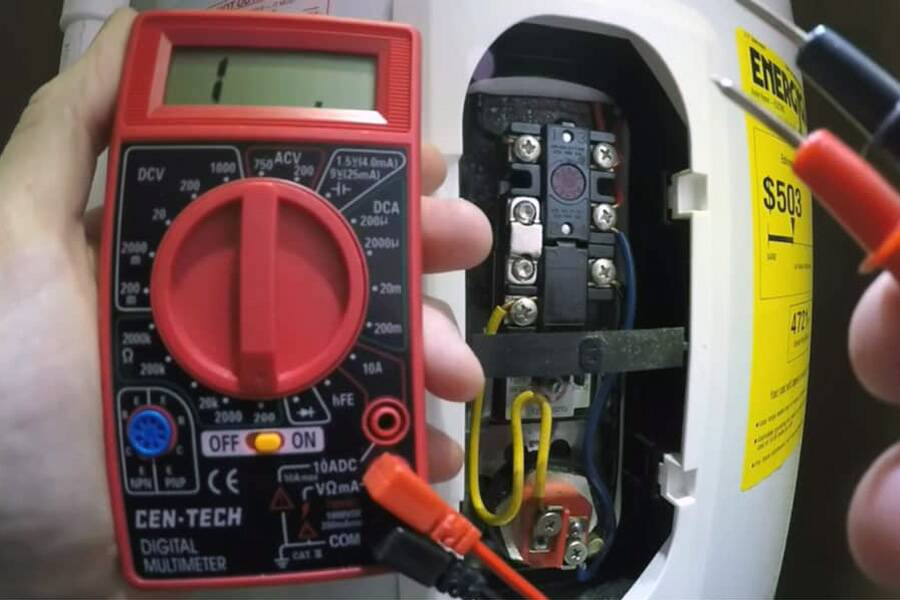

- Check for voltage using a voltage tester.
2. Remove the Thermostat
- Before disconnecting all the thermostat wires, label them. This will help you later when you have to reconnect the wiring (the correct wire to the correct terminal).
- Disconnect the wires from the old thermostat.
- Remove the mounting clip and lift out the thermostat. TIP: Always replace an old thermostat with a new thermostat of the same model.
3. Install the New Thermostat
- To jook up the new thermostat, attach the mounting clip.
- Reconnect the wires to the terminals using your labels as a guide (and that’s why you want to label the wires in step 2 above).
4. Reset the Power
- Read the water heater manufacturer’s instructions for the recommended temperature setting (it’s probably 120 degrees but always under 140 degrees).
- Make sure the tank is full of water.
- Turn the power back on at the circuit breaker.
- Press the red reset button on the thermostat.
- Replace any insulation you removed and reinstall the access panel.
Caution: Danger, High Voltage!
Electric water heaters use a 240-volt current. That’s twice the voltage found in standard receptacles. So, be sure to remove the fuse or shut off the breaker at the service panel.
Use your voltage meter to test any wires for electricity before starting any work. Keep in mind, a 240-volt circuit will probably have 2 fuses or a tandem circuit breaker.
Final Thoughts
In conclusion, learning how to replace an electric water heater thermostat is easy. The scariest thing to get past is working with electricity. But as long as you turn off the power at the breaker box and drain the tank of water, you’ll be perfectly safe.
